GENERAL

All Adama products consist of a diamond covered silicon cantilever integrated into a standard silicon support chip (3.4 mm x 1.6 mm x 0.3 mm) with alignment grooves on the back side. The length (L), width (W) and thickness (Th) of the cantilever beam are defined as follows.

general cantilever.png
Adama Cantilever Shape

Adama Cantilever Shape

The Bulk Tip is a polygon based 4-sided pyramid with a full cone angle is 45° when viewed along the cantilever axis and 55° when looking from the side. The height is 10 - 15 μm and features the diamond Adama Tip at the apex.

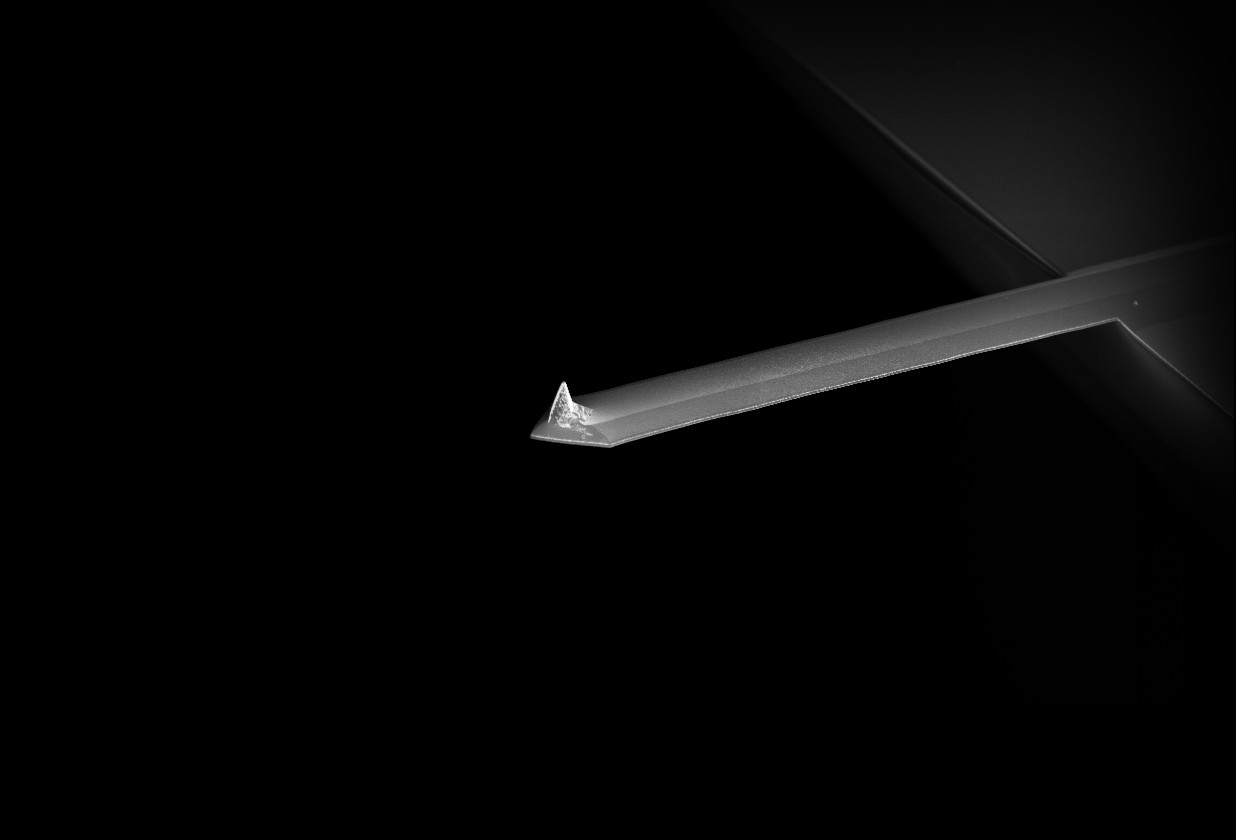

Adama Tip on Bulk Tip

Adama Tip on Bulk Tip

BULK TIP_ GENERAL.png
Bulk Tip (Front View)

Bulk Tip (Front View)
