GENERAL

 The cantilever is integrated into a silicon support chip.

The dimensions of the support chip are 3.4 mm x 1.6 mm x 0.3 mm and have alignment grooves on the back side.

general cantilever.png

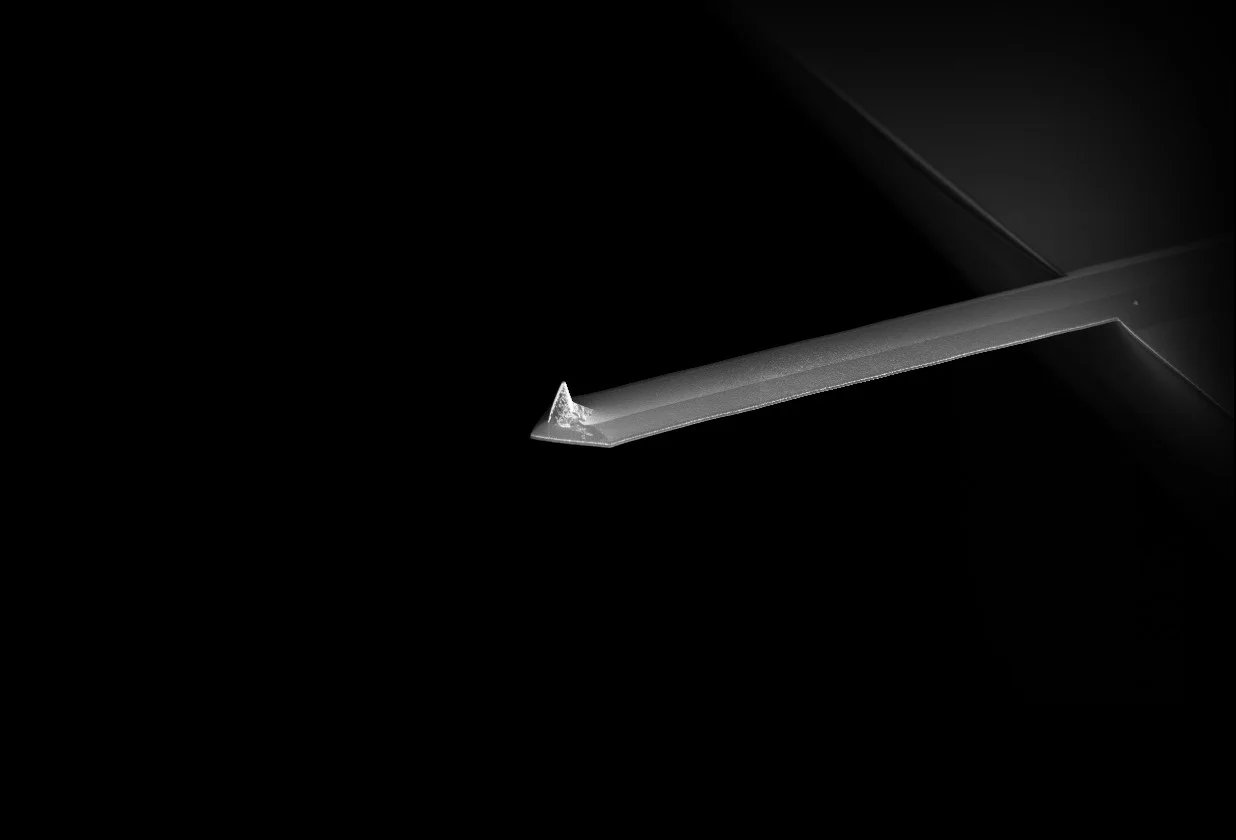

The Bulk tip is shaped like a polygon based pyramid.

Its full cone angle is 45° viewed along the cantilever axis 55° when looking from the side.

The height is 10 - 15 μm high and features the ADAMA tip at the apex.


bulk tip.png
Bulk tip- Front view

Bulk tip- Front view
