SUPER SHARP



Super Sharp diamond probes are capable of atomic resolution topographical and electrical imaging straight out of the box. These tips offer the highest electrical resolution on the market. By using wear-resistant sharp diamond probes the tip-sample contact size is well characterized and stays constant during mechanical and electrical measurements leading to more reliable data.

  • Highly doped with boron with a macroscopic resistivity of 0.003 - 0.005 Ω∙cm

  • Typical contact resistance of 10 kΩ depending on contact radius (measured on a silver surface)

  • Gold reflex coating on the detector side of the cantilever to enhance reflectivity




Tip Specifications




Bulk Tip see < General >

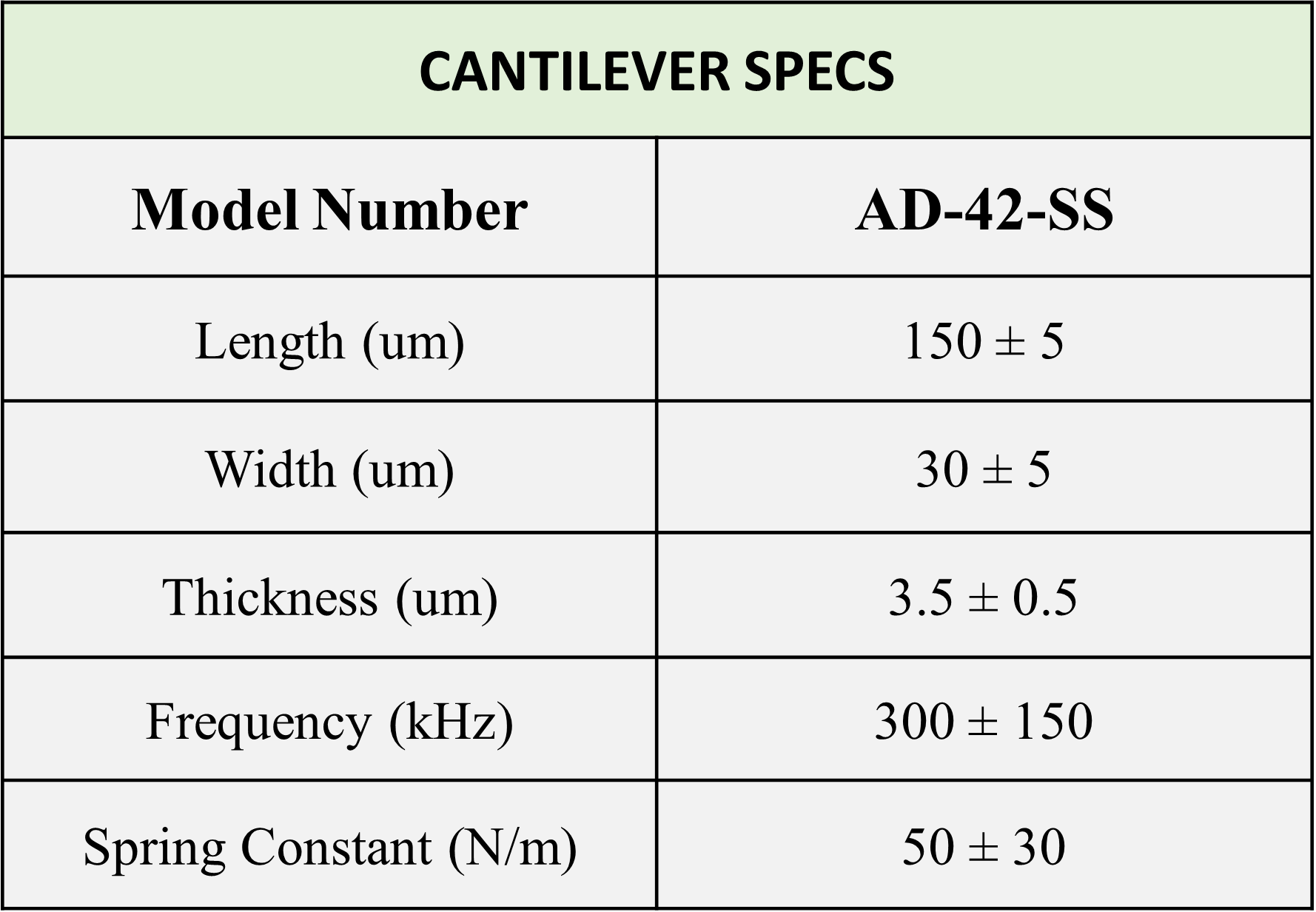

Cantilever Specifications






Pricing



Price per unit probe:

  • AD-2.8-SS: €270 or $300

  • AD-40-SS: €270 or $300

  • AD-42-SS: €270 or $300

Minimum quantity:

  • 5 probes in one box (5-pack)

  • Must order in multiples of 5 probes

  • Multiply x5 for 5-pack price



Volume discounts:

  • 25-pack = 5 %

  • 50-pack = 10 %

  • 100-pack = 15 %

Price List:

Options:

Add -SEM to model number to include

  • High-resolution SEM tip image

  • Tip radius measured at 5, 10 and 100 nm below the tip apex

  • Full cone angle measured between 20 and 100nm

  • Tip Height

  • add €45 or $50 per probe
